SCOPE OF APPLICATION: Closed impeller pumps with axial intake and upward-facing radial delivery. These pumps feature very high flow rate values and medium-low discharge head and are particularly suited for use in mobile irrigation systems, channels and storage tank systems. It is recommended that these pumps are used to carry only chemically pure liquids and free of foreign matter, with temperature not higher than 80°C.

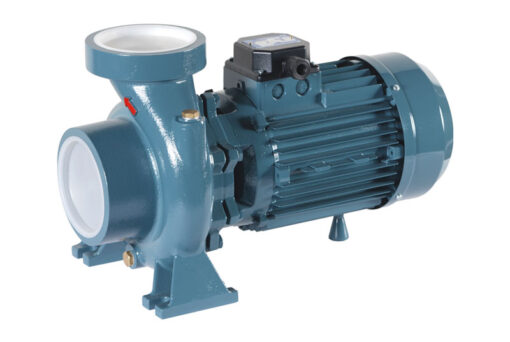

PUMP: Horizontal axis pump with cast iron impeller, pump body and base support made of G20 cast iron, AISI 416 stainless steel shaft and mechanical seal made of ceramic/ graphite.
MOTOR: Electric, closed-type with external cooling fan, IP 44 safety class. F insulation. The standard versions of single-phase motors are fitted with termostat-controlled safety microswitches to avoid undesirable damages to the motor. The user must provide protection for three-phase electropumps.
TENSION: SAM: 230-240 V. 50 Hz; SA: 230/400 V. 50 Hz. Different voltage and frequency ratings are available on request.
APPLICATIONS: Irrigation, Agriculture, Industry
