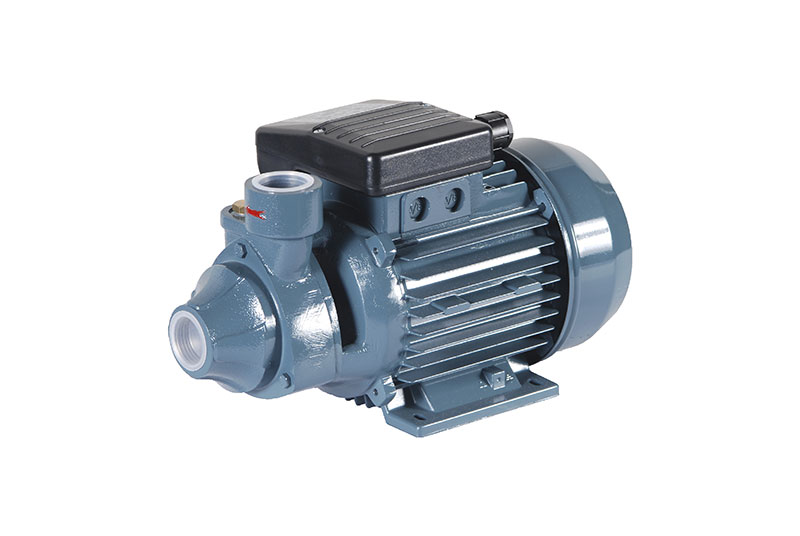

SCOPE OF APPLICATION: Radial impeller pumps with axial intake and upward-facing radial delivery. The main feature of these pumps is that they are capable of generating a medium-high discharge head with a relatively modest power consumption. These pumps are particularly suited for pumping up and distributing water in domestic water supply systems in houses, villas, small properties and gardens, as well as for providing water supply to high pressure water heating systems. It is recommended that these pumps are used to carry only chemically pure liquids and free of foreign matters, with temperature not higher than 80°C.
PUMP: Horizontal axis pump with bronze impeller, pump body and base support made of G20 cast iron, AISI 416 stainless steel shaft and mechanical seal, made of ceramic/ graphite.
MOTOR: Electric, closed-type with external cooling fan, IP 44 safety class. F insulation. The standard versions of single-phase motors are fitted with termostat-controlled safety microswitches to avoid undesirable damages to the motor. The user must provide protection for three-phase electropumps.
TENSION: PM: 230-240 V. 50 Hz; P: 230/400 V. 50 Hz. Different voltage and frequency ratings are available on request.
APPLICATIONS: Domestic, Irrigation, Fountains, Industry
